09230205

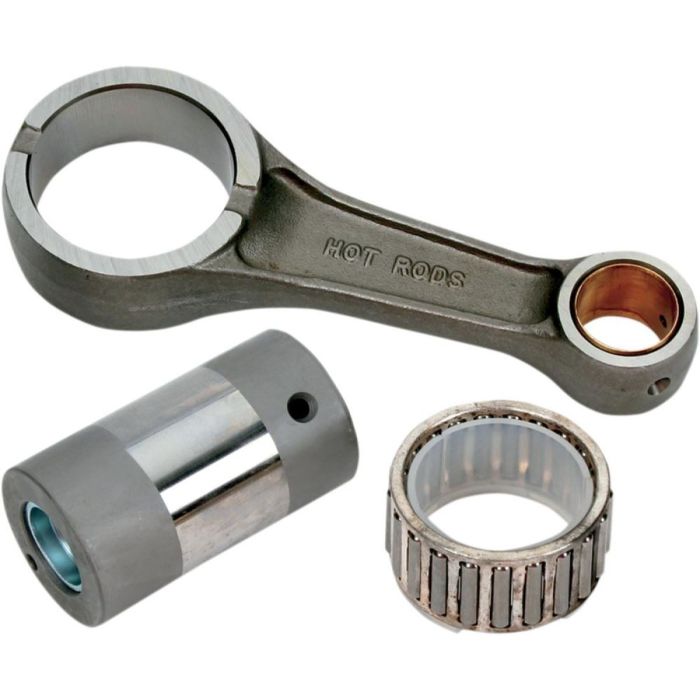

Honda TRX450R / ER 06-14 Hot Rods Connecting Rod Kit

In stock

  • Heavy-duty OE replacement connecting rods
  • Certified 8620 AISI steel provides superior strength
  • Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
  • Feature the latest in caged needle roller bearing designs for high rpm longevity
  • Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
  • Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
  • Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
  • Double honing produces an ultra-round bearing surface for reliability at high rpm
  • Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
  • Compatible with Hot Rods and OE crankshafts
  • Made in U.S.A.; connecting rod manufactured at Hot Rods Iowa facility

  • BrandHOT RODS
    Engine Type4-Stroke
    Product NameConnecting Rod Kit
    StyleHeavy Duty
    FeaturesIncludes Thrust Washers
    Material8620 Steel
    Vendor Part Number8660
    More Information
    Brand HOT RODS
