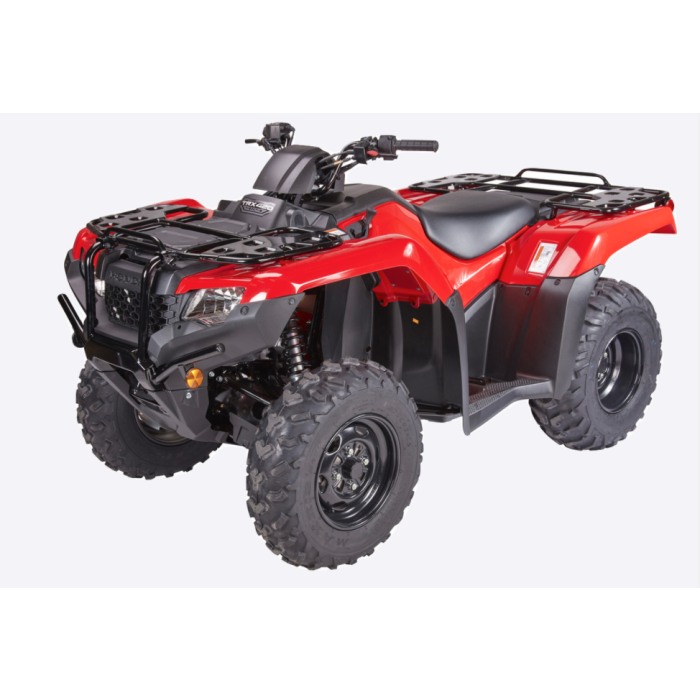

HONDATRX420FM1

Honda TRX420 Fourtrax FM1 Manual 2/4wd ATV

In stock
Only 1 left
Please Note - Do Not Purchase ATVs Online - We Do Not Accept Payment For Quads Online Or By Card Over The Phone Due To Fraud. Please Ring Sam On 07943 010421 - Thanks!


Honda TRX420 Fourtrax FM1

The UK's Best Selling ATV!

Specification -

Classification Utility work ATV
Engine 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
Carburation Keihin® PGM-FI, throttle bore size 34mm, body fuel-injection system
Ignition Full-transistorized ignition
Starter Electric with auxiliary recoil
Transmission Five forward gears with reverse, auto clutch with manual shift
Drive 4wd Direct drive-shafts, AP SuretracTM torque sensing limited-slip differential with switchable 2wd/4wd
Front Suspension Independent double-wishbone 170mm travel
Rear Suspension Swingarm with single shock 170mm travel
Power Steering No
Front Brakes 190mm dual hydraulic discs
Rear Brake 160mm sealed mechanical drum
Front tyres 24 x 8-12
Rear tyres 24 x 10-11
Fuel Capacity (l) 14.7L, incl. 4.9L reserve.
Bore x Stroke (mm) 86.5 x 71.5
Dimensions - Length (mm) 2103
Dimensions - Width (mm) 1205
Dimensions - Height (mm) 1174
Wheelbase (mm) 1268
Seat Height (mm) 856
Ground Clearance (mm) 183
Towing Capacity (kg) 385
Front Rack Capacity (kg) 30
Rear Rack Capacity (kg) 60

More Information
Brand HONDA
