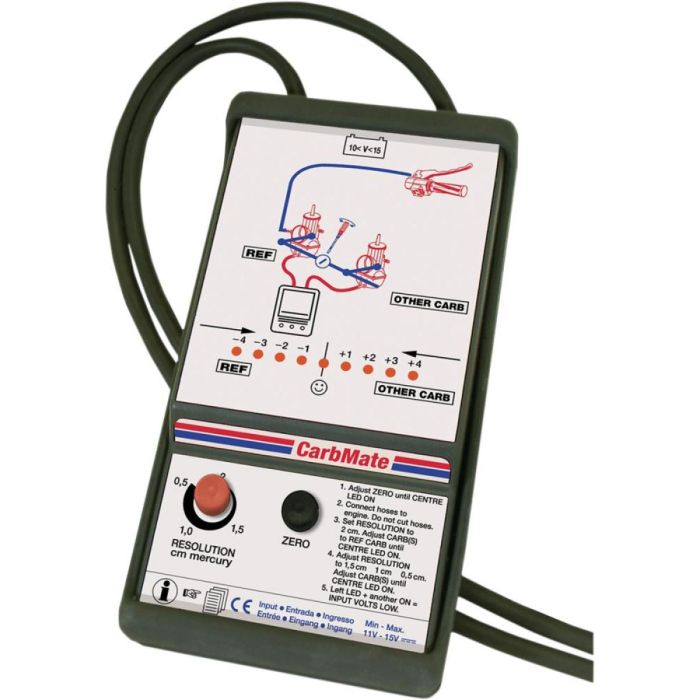

TECMATE CarbMate 2 Channel Carb and Fuel Injection Synchronizer ATV Quad Snowmobile PWC

CarbMate is a reliable, cost effective & portable replacement for both mercury sticks and unreliable dial gauges. The compact design and solid state electronics make the CarbMate very durable & resistant against nasty shocks & knocks. Further protection can be provided with an optional rubber holster.CarbMate displays the difference in vacuum intake settings of two linked carburettors very precisely on a single transverse "East-West" 9 LED display. Visual estimation errors, common to the traditional approach which is to visually compare the individual values on separate columns of mercury or dial gauges, are eliminated, as two pressures are compared and one value is displayed. A ZERO adjustment knob provides easy & quick pre-calibration prior to synchronizing. Without any tubes connected, adjust the knob until the centre LED is on. During calibration resolution can be adjusted from 2cmHg (centimetres of mercury) down to 0,5cmHg to allow the user to fine tune. Most vehicle O.E.s specify a resolution of 0,5cmHg for accurate synchronizing and CarbMate is the only low cost alternative able to meet the standard. Where different vacuum intake values are required for each carburettor, such as with some Mercury/Mariner and Yamaha 4-stroke outboards, the exact positive or negative difference between two carburettors can be read off the "differential" scale, which is calibrated from

• to + 4. (With resolution at 2cmHg the display difference spans from – to +8cmHg; with resolution at 0,5cmHg, the span becomes – to + 2cmHg) A single green LED at the dead-centre "happy face" mark indicates that the compared manifold vacuums are equal to within the selected resolution. Synchronisation of 4 linked carburettors or throttle valves is made easy using the optional 4-channel adapter kit. Optional adaptor kit for use with ROTAX engines is also available. Power is provided from the vehicle battery or an external 12V battery via a 2-meter / 6 ½ ft power cable with large crocodile clips. Simple, but clear user instructions are printed on the CarbMate, and are supplemented by an additional information leaflet. Threaded connection adapters in all-metal are available. As an alternative, also available as an option are the unique "flexi-rigid" style as used on the VacuumMate, which allow easier connection to difficult to reach manifold points. Further options include permanent manifold connection kits for anytime quick & easy synchronizing without the bother of fitting and removing temporary adapters (Click on Accessories, then Manifold perma-adapter(s)). A specially designed optional carry case for storing the CarbMate and threaded adapters is available. A 2 year limited warranty is offered.
